Underground pipes anticorrosion bitumen wrapping tape for special section tube
|Unit Price:||2.2~10.3 USD|
|Payment Type:||T/T,L/C,Western Union|
|Terms of Trade:||FOB|
|Min. Order:||200 rolls|
|Delivery Time:||7 Days|
|Packaging:||Packing in carton|
|Place of Origin:||China|
Model No.: T600
- Heavy duty adhesive.
Ensures a strong bond & impervious seal.
- Conformable to irregular shapes.
- Offers a solution for nearly every application.
- No release liner. Makes installation fast and easy.
- Cold applied
- Complies with ASTMD 1000,AWWA C 214&209.
- Reliable, high-performance corrosion protection.
- Compatible with generic plant coating systems.
- Compatible with PE,FBE,TAPE &COAL TAR coatings.
PE pipe coating materials Bitumen wrapping tape
PE pipe coating materials Bitumen wrapping tape
is a long-term UV resistance high tack joint wrap for above or below ground use, the unique product is easily applied to corrosion protection /fire passive, and water proof of straight pipes, fittings, flanges valves, bends, elbows, Carbon Steel Pipes and insulate pipe.
Joint wrap tape be made of a stabilized PVC carrier film, coated on one sides with a permanently plastic synthetic compound on Butyl rubber compound bitumen base. 3600 is available in black.
The specification of the tape consists of three layers,
Adhesive: Butyl rubber Compound Bituminous Adhesion Promoting Resins
Film backing: Special blend of stabilized PVC
Interleaf: Anti-adhesive Film Treated with Silicone (release paper)
Product Model No.
Standard ordering options
Total tape thickness in mils
Tape backing color
Tape width in inches
Tape roll length in feet
1 Rust Removal
Steel Surface needs treating. Its quality shall reach Sa2 or St3 grade as prescribed in GB8923-88 Pre-paint Steel Surface Rust Grade and Rust-removal Grade, and it shall be dust-free.
Primer shall be stirred well before painting. An even film of primer is painted on the steel surface that is rust-removed completely and dust-free. After the primer dries up (one may feel no sticky). The Steel Pipe can be wrapping with tape (it usually takes 3 to 5 minutes). The primer dosage usually amounts to 80 to 100g / m².
3 Inner Tape (Anti corrosion Tape) & Outer Tape (Protection Tape) Wrapping
The steel pipe that is painted with primer is wrapping with tape by means of suitable devices or tools as per joint needs, and wraps the inner tape and then wraps the outer tape. Tape tensibility can be 10 to 20 N / cm. The overlapped length between beginning and end of an adhesive tape shall be no less than 1/4 circumference of the steel pipe and the total length of adhesive tape shall be no less than 100mm. each film shall be paralleled, and must not be twisted and rumpled.
Jining Xunda Pipe Coating Materials Co.,Ltd
Jining Xunda Pipe Coating Materials Co.,Ltd , the manufacturer of the manufacturer corrosion prevention coating materials construction waterproof and sealing coating materials.
A joint-stock enterprise, possessing a gross investment of RMB 42 million, registered capital of RMB 20 million.
Our services : underground, underwater and aboveground oil , gas , water and petrochemical pipelines transport system corrosion and mechanical protection.Construction building roof , bathroom ,kitchen waterproof.bridge concrete waterproof and sealing.Pipeline insulation and UV resistance.shipbuilding and oil,water tanks waterproof and corrosion prevention.

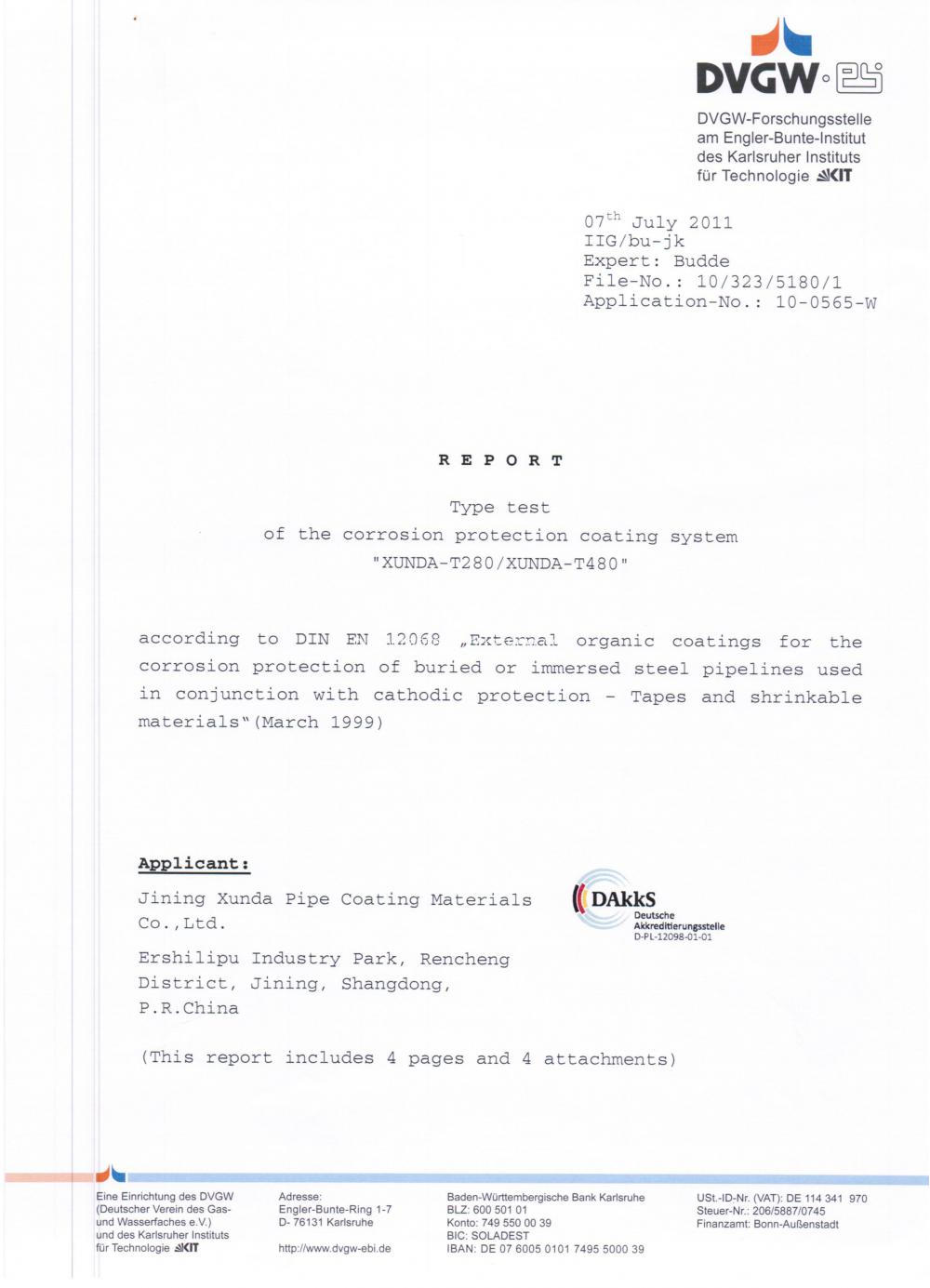

Our advantage: we have the advanced production technology, Scientific management method, First-class R & D team, Perfect after sales service system . We have passed the SGS , DVGW, AWWA test and ISO9001, ISO14001, ISO18001,Bureau Veritas certification. We are the Audited Suppliers of SINOPEC, CNOOC,CNPC. We are also one of the largest pipeline anti-corrosion tape manufacturer in China since 2014.
Our major market including more than 70 countries, widely distributed in South Asia, Southeast Asia, Central Asia, West Asia, the Middle East, Africa, Europe, Eastern Europe, South America, Australia.
Your needs , our pursuit .
Mission and Vision :
Xunda will continue to develop corrosion prevention, waterproof and sealing solutions for the protection of client's valuable infrastructural assets around the world, ensuring our clients derive maximum benefit from our solutions. fulfilling all market requirements for a performance guarantee against corrosion , whilst ensuring respect for the environment and applicator.
Pursuing world leadership for innovative, cost-effective, and environmentally corrosion prevention , waterproof and sealing solution.
- Company Name: Jining Xunda Pipe Coating Materials Co.,Ltd
- Representative: Mr.Cao
- Product/Service: Pipe Anti-corrosion Tape , Corrosion Protection Tape , Pipe Wrap Tape , Polyethylene Butyl Rubber Tape , Butyl Putty Tape , Visco-elastic Tape
- Capital (Million US $): 2000RMB
- Year Established: 2010
- Total Annual Sales Volume (Million US $): US$10 Million - US$50 Million
- Export Percentage: 71% - 80%
- Total Annual Purchase Volume (Million US $): Below US$1 Million
- No. of Production Lines: 6
- No. of R&D Staff: Fewer than 5 People
- No. of QC Staff: Fewer than 5 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 10,000-30,000 square meters
- Factory Location: Ershilupu Industrial Park
- Contact Person: Mr. Kevin Zhang
- Tel: 86-15753-761575
